Bộ phát wifi 6 Extreme AP305C-1-WR, indoor, 2 băng tần

Giá: Liên hệ

Bộ phát sóng không dây chuẩn 802.11ax
Thiết bị AP 305C-1-WR 802.11ax/ac/abgn. 2×2 radio với Dua 5Ghz. Internal Antenna. Hỗ trợ tuỳ chọn nhiều hệ điều hành, nhiều kiến trúc hoạt động.

Danh mục: Bộ phát wifi Extreme

Mô tả
Đánh giá (0)

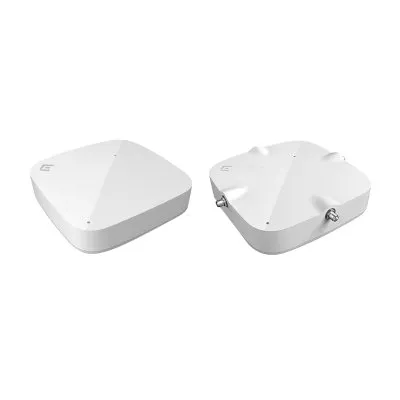

Thiết bị W-Fi 6 Extreme AP305C Indoor Access Point (AP305C-1-WR)

Model	AP305C-1-WR
Interfaces	• (1) Autosensing 10/100/1000 BASE-T Ethernet PoE (Power over Ethernet 802.3af) Port • USB2.0, Type A 5V, 0.9A ₀ USB power <= 500 mA – 802.3af ₀ USB power > 500 mA – 802.3at
Radio Specifications	Max Users • SSID per Radio/Total: 8/16 • Users per Radio/total: 512/1024 802.11n • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • Rates (Mbps): MCS0 – MCS15 (6.5MBps – 300Mbps) • 2×2 Multiple-In, Multiple-Out (MIMO) Radio • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) • HT40 High-Throughput (HT) Support for 5 GHz • A-MPDU and A-MSDU Frame Aggregation 802.11ac • 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 867Mbps), NSS = 1-2. • 2×2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80 support • TxBF (Transmit Beamforming) 802.11ax • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): • 5G: HE0-HE11 (8 Mbps – 1200 Mbps). • 2.4G: HE0-HE11 (8 Mbps – 574 Mbps). • 2×2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio • HE20/HE40/HE80 support for 5 GHz • HE20 support for 2.4 GHz • DL SU-MIMO and MU-MIMO • TxBF (Transmit Beamforming)
Power Options	• Power Draw: ₀ Typical: 9.98 W; Max: 11.28 W (w/o USB) ₀ Typical: 14.98 W; Max: 16.28 W (w/USB) • 802.3af Power over Ethernet (PoE) capable Gigabit Ethernet port (RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6) • Support 802.3af/802.3at Power over Ethernet injector
Power Specifications	• IEEE 802.3af PoE Power
Physical	• 133mm x 133mm x 37mm • 4kg • TPM Chip
Antennas	– Internal Antennas • (3) Integrated dual band 2.4/5GHz omnidirectional antennas • (1) Integrated single band 5GHz omnidirectional antenna
Mounting	• AP support 15/16 flush ceiling tile and is integrated to AP • Wall Mount sold as an accessory • Ceiling Tile Recessed 15/16″ sold as an accessory • Built-in slot for Kensington type locks
Environmental	• Operating: 0 to 40 °C • Storage: -40 to 70 °C • Humidity: 10% to 95% (non-condensing)
