Bộ phát wifi 6 Extreme AP310e-1-WR, indoor, 2 băng tần

Giá: Liên hệ

Bộ phát sóng không dây chuẩn 802.11ax
Thiết bị AP310e-1-WR 802.11ax/ac/abgn. Thông lượng 867Mbps (802.11ac) và 12000 Mbps (802.11ax)
Cloud-ready, Dual Radio, 2×2:2 MIMO. External Antenna

Danh mục: Bộ phát wifi Extreme

Mô tả
Đánh giá (0)

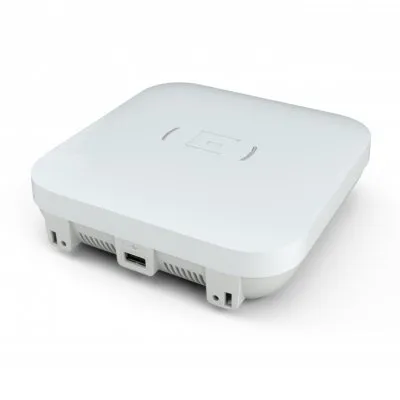

Thiết bị Wi-Fi 6 Extreme AP310e Indoor Access Point

Model	AP310e-1-WR
Interfaces	• (2) Autosensing 10/100/1000 Ethernet Port, RJ45 • USB3.0, Type A , 0.5A
Radio Specifications	Max Users • SSID per Radio/Total: 8/16 • Users per Radio/total: 512/1024 802.11n • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • Rates (Mbps): MCS0 – MCS15 (6.5MBps – 300Mbps) • 2×2 Multiple-In, Multiple-Out (MIMO) Radio • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) • HT40 High-Throughput (HT) Support for 5 GHz • A-MPDU and A-MSDU Frame Aggregation 802.11ac • 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 867Mbps), NSS = 1-2. • 2×2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80 support • TxBF ( Transmit Beamforming) 802.11ax • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): • 5G: HE0-HE11 (8 Mbps – 1200 Mbps) • 2.4G: HE0-HE11 (8 Mbps – 574 Mbps) • 2×2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio • HE20/HE40/HE80 support for 5 GHz • HE20/HE40 support for 2.4 GHz • DL SU-MIMO and MU-MIMO • TxBF (Transmit Beamforming)
Power Specifications	• IEEE 802.3af PoE Power
Power Options	• Power Draw: ₀ Typical: 9W, Max:11.1W (w/o USB) ₀ Typical: 12W, Max:14W (w/ USB) • 802.3af Power over Ethernet (PoE) capable Gigabit Ethernet port (RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6) • 802.3af Power over Ethernet injector • PoE Out Supports 802.3af Powered Devices (PD) when powered by 802.3at
Physical	• 165mm x 165mm x 45mm • 0.7 kg
Antennas	• (4) RP SMAs connectors
Mounting	• Wall, and flat tile and 15/16″ wide tbar, mount included as part of AP • Built-in slot for Kensington type locks • 5/8″ Ceiling tile protrusions on 9/16″. 15/16″ and 1.5″ wide t-bars sold as an accessory • Flush ceiling tiles with 9/16″. 15/16″ and 1.5″ wide t-bars sold as an accessory
Environmental	• Operating: 20 to 55°C • Storage: -40 to 70°C
