Bộ phát wifi 6 Extreme AP360i-WR, Outdoor IP67, 2 băng tần

Giá: Liên hệ

Bộ phát sóng không dây ngoài trời chuẩn 802.11abgn/ac/ax
AP360i-WR: WiNG 802.11abgn/ac/ax Outdoor IP67 Rated. Thông lượng 867Mbps (802.11ac) và 1200 Mbps (802.11ax). MU-MIMO, 2×2:2, Dual radio, Internal antenna Access Point

Danh mục: Bộ phát wifi Extreme

Mô tả
Đánh giá (0)

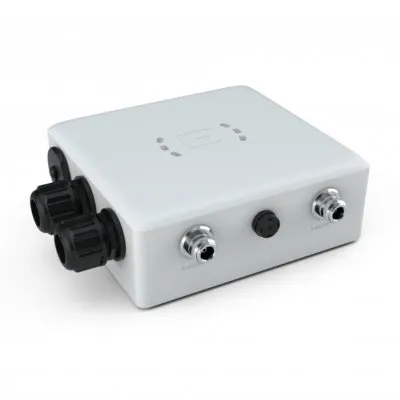

Thiết bị Wi-Fi 6 Extreme AP360i Outdoor Access Point

Model	AP360i-WR
Interfaces	• (2) Autosensing 10/100/1000 Ethernet
Radio Specifications	802.11n • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • Rates (Mbps): MCS0 – MCS15 (6.5MBps – 300Mbps) • 2×2 Multiple-In, Multiple-Out (MIMO) Radio • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) • HT40 High-Throughput (HT) Support for 5 GHz • A-MPDU and A-MSDU Frame Aggregation 802.11ac • 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 867Mbps), NSS = 1-2. • 2×2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80 support • TxBF ( Transmit Beamforming) 802.11ax • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): • 5G: HE0-HE11 (8 Mbps – 1200 Mbps). • 2.4G: HE0-HE11 (8 Mbps – 574 Mbps). • 2×2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio • HE20/HE40/HE80 support for 5 GHz • HE20/HE40 support for 2.4 GHz • DL SU-MIMO and MU-MIMO • TxBF (Transmit Beamforming)
Power Specifications	• IEEE 802.3af PoE Power • 802.3af Power over Ethernet (PoE) capable Gigabit Ethernet port (RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6) • 802.3af Power over Ethernet injector
Radios	• BLE Radio Bluetooth® Low Energy (BLE) and IEEE® 802.15.4 compliant • Internal GPS – accuracy is 2.5m- 3m in open sky
Physical	• 190mm x 145mm x 50mm • 1.0kg
Antennas	• (2) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional antennas • (2) Integrated single band, 5.1-5.8 GHz omnidirectional antennas • (1) Integrated single band, 2.4-2.5 GHz omnidirectional antennas for BLE
Mounting	• Pole Mount with 15 degree tilt (sold as an accessory) • 12″ Extension arm (sold as an accessory) • 10″ Extension w/2-axis 80 degree tilt (sold as an accessory)
Environmental	• Operating: – 40°C to 60°C • Storage: -40 to 70 °C • Humidity: 0% to 95% (non-condensing) • Wind Rating: 165 Mph sustained winds
