Bộ phát wifi 6 Extreme AP410C

Giá: Liên hệ

AP410C-WR – Extreme AP410C Wi-Fi 6 (802.11ax) Tri-Radio Access Point :

1 x 100/1000/2500 Mbps port support PoE 802.3at
1 x 10/100/1000 Mbps port
4×4:4 MIMO@5GHz, 2×2:2 MIMO@2.4GHz
Internal Antennas
BLE Radio Bluetooth Low Energy (BLE)
SSID per Radio/Total: 8/16
ExtremeCloud IQ or On-Premise

Danh mục: Bộ phát wifi Extreme

Mô tả
Đánh giá (0)

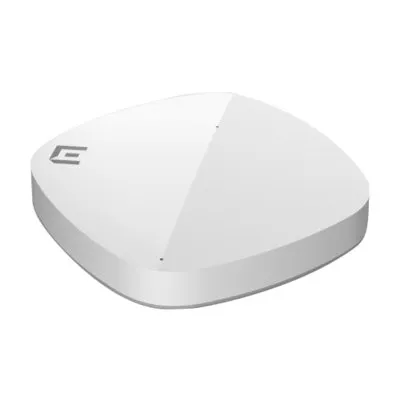

Thiết bị Wi-Fi 6 Extreme AP410C Indoor Access Point

Model	AP410C-WR
Interfaces	• (1) 100/1000/2500 Mbps auto-negotiation Ethernet port, RJ45 PoE (Power over Ethernet 802.3at) Port • (1) 10/100/1000 Mbps auto-negotiation Ethernet port, RJ45 • USB 2.0, Type A , 5V, 0.9A
Radio Specifications	Max Users • SSID per Radio/Total: 8/16 • Users per Radio/total: 512/1024 802.11n • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) • HT40 High-Throughput (HT) Support for 5 GHz • A-MPDU and A-MSDU Frame Aggregation 802.11ac • 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • Rates (Mbps): MCS0 – MCS31 (6.5MBps – 600Mbps) • 5G: 4×4 Multiple-In, Multiple-Out (MIMO) Radio • 2.4G: 2×2 Multiple-In, Multiple-Out (MIMO) Radio • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 3467Mbps), NSS = 1-4. • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80/VHT160 support • TxBF ( Transmit Beamforming) 802.11ax • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): • 5G: HE0-HE11 (8 Mbps – 4800 Mbps). • 2.4G: HE0-HE11 (8Mbps – 574 Mbps). • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 5GHz • 2×2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio @2.4GHz • HE20/HE40/HE80/HE160 support for 5 GHz • HE20/HE40 support for 2.4 GHz • DL SU-MIMO and MU-MIMO • TxBF (Transmit Beamforming)
IOT Radio	• BLE 5 Radio Bluetooth® Low Energy (BLE)
Power Specifications	• IEEE 802.3at PoE Power
Power Options	• Power Draw: ₀ Typical: 17.69; Max: 18.74 (w/o USB) ₀ Typical: 22.69; Max: 23.74 (w USB) • 802.3at Power over Ethernet (PoE) capable • Gigabit Ethernet port (RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6) • 802.3af Power over Ethernet injector
Physical	• 205mm x 205mm x 37mm • AP410C: 0.9 kg • TPM chip
Internal Antennas	• (3) Integrated single band, 5.1-5.8 GHz omnidirectional antennas • (2) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional • (1) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional for BLE and WiFi 5G • (1) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional for sensor
Mounting	• AP support 15/16 flush ceiling tile included in the box • Wall Mount sold as an accessory • Ceiling Tile Recessed 15/16″ sold as an accessory • Built-in slot for Kensington type locks
Environmental	• Operating: 0 to 40°C • Storage: -40 to 70°C • Humidity: 0% to 95% (non-condensing)
