Bộ phát wifi 6 Extreme AP460e-WR, Outdoor IP67, 2 băng tần

Giá: Liên hệ

Bộ phát sóng không dây ngoài trời chuẩn 802.11abgn/ac/ax
AP460e-WR: WiNG 802.11abgn/ac/ax Outdoor IP67 Rated. Thông lượng 3467Mbps (802.11ac) và 4800 Mbps (802.11ax). 4×4:4 + 2×2:2 Full time 2×2:2 Sensor. External Antenna

Danh mục: Bộ phát wifi Extreme

Mô tả
Đánh giá (0)

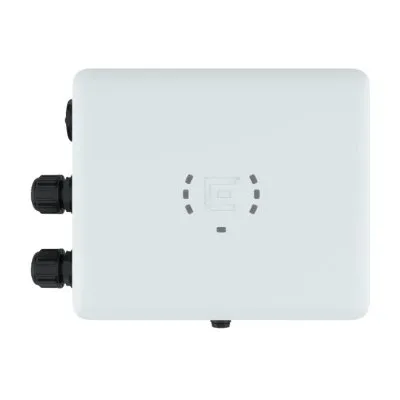

Thiết bị Wi-Fi 6 Extreme AP460e Outdoor Access Point

Model	AP460e-WR
Interfaces	• 100/1000/2500 Mbps auto-negotiation Ethernet port, RJ45 PoE+ (Power over Ethernet 802.3at) Port • 10/100/1000 Mbps auto-negotiation Ethernet port, RJ45
Radio Specifications	Max Users • SSID per Radio/Total: 8/16 • Users per Radio/total: 512/1024 802.11n • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • Rates (Mbps): MCS0 – MCS31 (6.5MBps – 600Mbps) • 5G: 4×4 Multiple-In, Multiple-Out (MIMO) Radio • 2.4G: 2×2 Multiple-In, Multiple-Out (MIMO) Radio • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) • HT40 High-Throughput (HT) Support for 5 GHz • A-MPDU and A-MSDU Frame Aggregation 802.11ac • 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 3467Mbps), NSS = 1-4. • 2×2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80 support • TxBF (Transmit Beamforming) 802.11ax (for 5 GHz Sensor) • 5.150–5.850 GHz Operating Frequency • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): HE0-HE11 (8 Mbps – 1200 Mbps), NSS = 1-2. • 2×2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80/VHT160 support • TxBF (Transmit Beamforming) 802.11ax (for 5 GHz Radio) • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): ₀ 5G: HE0-HE11 (8 Mbps – 4800 Mbps) ₀ 2.4G: HE0-HE11 (8Mbps – 574 Mbps) • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio • HE20/HE40/HE80/HE160 support for 5 GHz • HE20/HE40 support for 2.4 GHz • DL SU-MIMO and MU-MIMO • TxBF (Transmit Beamforming) Radios • BLE Radio Bluetooth® Low Energy (BLE) and IEEE® 802.15.4 compliant • Internal GPS – accuracy is 2.5m- 3m in open sky
Power Specifications	• IEEE 802.3at PoE+ Power
Power Options	• Power Draw: Typical: 15.23W; Max. 19.78W • 802.3at Power over Ethernet (PoE+) capable Gigabit Ethernet port (RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6) • 802.3af Power over Ethernet injector
Physical	• 260mm x 192mm x 65mm • 1.8 kg
Antennas	– External Antennas • 8 Ntype connectors • 1 Ntype connector for BLE
Mounting	• Pole Mount with 15 degree tilt • 12″ Extension arm • 10″ Extension w/2-axis 80 degree tilt
Environmental	• Operating: -40 to 60 °C • Storage: -40 to 70 °C • Humidity: 0% to 95% (non-condensing) • Wind Rating: 165 Mph sustained winds
