Bộ phát wifi 6 Extreme AP505i

Giá: Liên hệ

AP505i-WR – Extreme AP505i Wi-Fi 6 Dual-Radio Indoor Access Point :

1 x 100/1000/2500 Mbps Ethernet port, PoE 802.3at
1 x 10/100/1000 Mbps Ethernet port
2.4 GHz 4×4:4, 5 GHz 4×4:4
Internal Antennas
BLE Radio Bluetooth Low Energy (BLE)
On-Premises Management

Danh mục: Bộ phát wifi Extreme

Mô tả
Đánh giá (0)

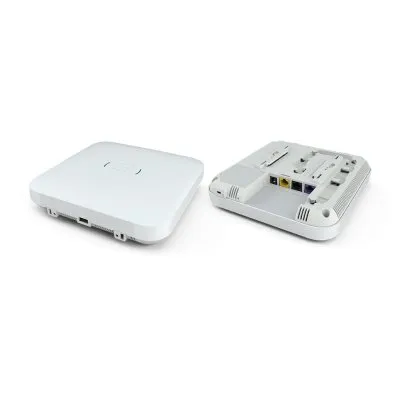

Thiết bị Wi-Fi 6 Extreme AP505i Indoor Access Point

Model	AP505i-WR
Interfaces	• (1) 100/1000/2500 Mbps auto-negotiation Ethernet port, RJ45 PoE (Power over Ethernet 802.3at) Port (802.3bz supported) • (1) 10/100/1000 Mbps auto-negotiation Ethernet port, RJ45 • USB3.0, Type A, 0.5A
Radio Specifications	• SSID per Radio/Total: 8/16 • Users per Radio/total: 256/512 • TPM (Trusted Platform Module) 802.11n • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) • HT40 High-Throughput (HT) Support for 5 GHz • A-MPDU and A-MSDU Frame Aggregation • CSD and CDD 802.11ac • 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • Rates (Mbps): MCS0 – MCS9 (6.5MBps – 800Mbps) • 5G: 4×4 Multiple-In, Multiple-Out (MIMO) Radio (MRC) • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 3467Mbps), NSS = 1-4. • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80/VHT160 support • TxBF (Transmit Beamforming) 802.11ax • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): • 5G: HE0-HE11 (8 Mbps – 4800 Mbps) • 2.4G: HE0-HE11 (8Mbps – 1148 Mbps) • HE20/HE40/HE80/HE160 support for 5 GHz • HE20/HE40 support for 2.4 GHz • DL SU-MIMO and MU-MIMO (MRC) • TxBF (Transmit Beamforming)
Power Options	• Power Draw: Typical: 18 W; Max: 22 W • 802.3at Power over Ethernet (PoE) capable (Full functionality) • Gigabit Ethernet port (RJ-45 power input pins: • Wires 4,5,7,8 or 1,2,3,6) • 802.3af Power over Ethernet injector (Reduced Functionality)
Physical	• 210mm x 210mm x 48mm • 1.45 kg
Antennas	– Internal Antennas • (4) Integrated single band, 2.4-2.5 GHz omnidirectional antennas • (4) Integrated single band, 5.1-5.8 GHz omnidirectional antennas • (1) Integrated single band, 2.4-2.5 GHz omnidirectional antennas for BLE
Mounting	• Wing Bracket Compatible • Extreme Multi-Tbar • Kensington Lock
Security	• WPA, WPA2(AES), WPA3, 802.11i, 802.11x, IPSec, IKEv2, PKCS#10, x509 DER / PKCS #12 SSL
Environmental	• Operating: 0 to 40°C • Storage: -40 to 70°C • Humidity: 0% to 95% (non-condensing) • Electrostatic Discharge: 15kV air, 8kV contact
