Bộ phát wifi 6E Extreme AP4000

Giá: Liên hệ

AP4000-WW – Extreme AP4000 Wi-Fi 6E Tri-Radio Indoor Access Point :

1 x 100/1000/2500Mbps Ethernet port, POE 802.3at
1 x 10/100/1000 Mbps Ethernet port
2.4 GHz (2×2:2), 5 GHz (2×2:2), 6 GHz (2×2:2)
Internal Antennas
BLE Radio Bluetooth Low Energy (BLE)
Cloud and On-Premises Management

Danh mục: Bộ phát wifi Extreme

Mô tả
Đánh giá (0)

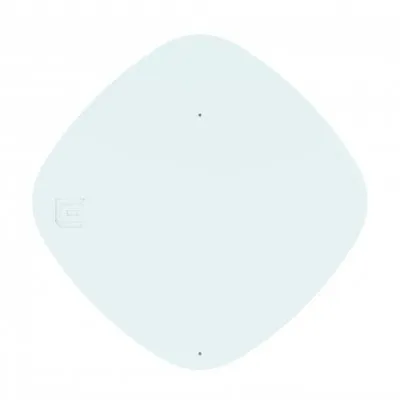

Thiết bị Wi-Fi 6E Extreme AP4000 Indoor Access Point

Model	AP4000-WW
Radio Specifications	Max Users • SSID per Radio/Total: 8/24 • Users per Radio/total: 512/1536 802.11n • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) • HT40 High-Throughput (HT) Support for 5 GHz • A-MPDU and A-MSDU Frame Aggregation 802.11ac • 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • Rates (Mbps): MCS0 – MCS31 (6.5MBps – 600Mbps) • 5G: 2×2 Multiple-In, Multiple-Out (MIMO) Radio • 2.4G: 2×2 Multiple-In, Multiple-Out (MIMO) Radio • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 1734Mbps), NSS = 1-2. • 2×2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80/VHT160 support • TxBF (Transmit Beamforming) 802.11ax • 2.4-2.5GHz, 5.50-5.850 and 5.925-7.125 GHz Operating Frequencies • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): • 6G: HE0-HE11 (8 Mbps – 2400 Mbps) • 5G: HE0-HE11 (8 Mbps – 2400 Mbps) • 2.4G: HE0-HE11 (8Mbps – 574 Mbps) • 2×2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 6GHz • 2×2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 5GHz • 2×2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio @2.4GHz • HE20/HE40/HE80/HE160 support for 6 GHz • HE20/HE40/HE80 support for 5 GHz • HE20/HE40 support for 2.4 GHz • DL SU-MIMO and MU-MIMO • TxBF (Transmit Beamforming)
IOT Radio	• Thread, Zigbee®, Bluetooth® 5.2 Low Energy, IEEE 802.15.4
Interfaces	• Eth0, Eth1: (2) Wired Ethernet ports (RJ-45) • (1) 100/1000/2500Mbps auto-sensing link speed Ethernet port, POE 802.3at • (1) 10/100/1000 Mbps auto-sensing link speed Ethernet port • 802.3az Energy Efficient Ethernet(EEE) • USB 2.0, Type A, 5V/500mA
Power Specifications	• IEEE 802.3at PoE Power
Power Options	• Power Draw: ₀ Typical: 12.3W; Max: 13.8W (w/o USB) ₀ Typical: 15W; Max: 16.6W (w USB) • 802.3at Power over Ethernet (PoE) capable • Gigabit Ethernet port (RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6)
Physical	• Dimensions: 205mm x 205mm x 37mm • Weight: 0.85 kg • Kensington lock slot • Trusted Platform Module(TPM)
Internal Antennas	• (2) Integrated single band, 5.925-7.125 GHz omnidirectional antennas • (2) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional • (2) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional for sensor • (1) Integrated dual band, 2.4-2.5 GHz omnidirectional for IoT
Mounting	• AP support 15/16 flush ceiling tile include in box • Wall mount included in box or sold as an accessory • Ceiling Tile Recessed 15/16 sold as accessory • Beam sold as an accessory • Junction Box sold as an accessory • IL or 9/16 t-bar sold as an accessory • SL (Silhouette) sold as an accessory • Wing Main Plate adaptor sold as an accessory • Built in slot for Kensington
Environmental	• Operating: AP4000: 0 to 50°C • Storage: -40 to 70°C • Humidity: 0% to 95% (non-condensing)
