Bộ phát wifi 6E Extreme AP5050D

Giá: Liên hệ

AP5050D-WW – Extreme AP5050D Wi-Fi 6E Tri-Radio Outdoor Access Point :

Tri Radio Wi-Fi (4×4:4), 2.4 GHz, 5GHz, 6GHz
Eth0 is 5/2.5/1GE with PoE
Eth1 is 2.5/1GE/100 with PSE 15.4W when 802.3bt on Eth0
Directional Antennas
IP67-Rated
BLE Radio Bluetooth Low Energy (BLE)
Cloud and On-Premises Management

Danh mục: Bộ phát wifi Extreme

Mô tả
Đánh giá (0)

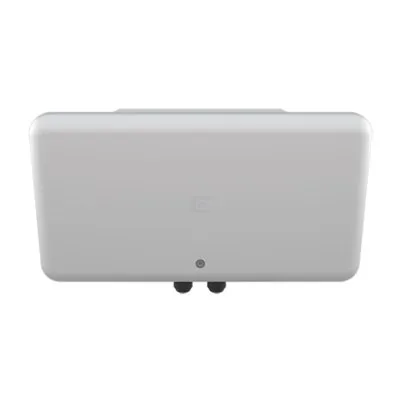

Thiết bị Wi-Fi 6E Extreme AP5050D Outdoor Access Point

Model	AP5050D-WW
Radio Specifications	Max Users • SSID per Radio/Total: 8/24 • Users per Radio/total: 512/1536 802.11n • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) • HT40 High-Throughput (HT) Support for 5 GHz • A-MPDU and A-MSDU Frame Aggregation • Rates (Mbps): MCS0 – MCS31 (6.5MBps – 600Mbps) 802.11ac • 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • 5G: 4×4 Multiple-In, Multiple-Out (MIMO) Radio • 2.4G: 4×4 Multiple-In, Multiple-Out (MIMO) Radio • Rates (Mbps): MCS0–MCS9 (6.5Mbps), 3466Mbps, NSS = 1-4. • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80/VHT160 • TxBF (Transmit Beamforming) 802.11ax • 2.4-2.5GHz, 5.50-5.850 and 5.925-7.125 GHz Operating Frequencies • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): • 6G: HE0-HE11 (8 Mbps – 4800 Mbps) • 5G: HE0-HE11 (8 Mbps – 4800 Mbps) • 2.4G: HE0-HE11 (8Mbps – 1148 Mbps) • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 6 GHz • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 5 GHz • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 2.4 GHz • HE20/HE40/HE80/HE160 support for 6 GHz • HE20/HE40/HE80/HE160 support for 5 GHz • HE20/HE40 support for 2.4 GHz • DL SU-MIMO and MU-MIMO • TxBF (Transmit Beamforming)
IoT Radio	• Thread, Zigbee®, Bluetooth® 5.2 Low Energy, IEEE 802.15.4
GPS Radio	• Support L1 frequency (1575.42 Mhz)
Interfaces	• Eth0 is 5/2.5/1GE with Power over Ethernet (PoE) • Eth1 is 2.5/1GE/100 with PoE power sourcing equipment (PSE) 15.4W when 802.3bt on Eth0
Power Options	• Power Draw: 802.3at PoE: Typical 21W; Max: 25.5W (802.3at profile) w/o PoE out • Power Draw: 802.3bt: PoE out enable • Eth0 PoE 5Gbps Ethernet port RJ45
Physical Specifications	• Dimensions: 28.6 cm x 48.4 cm x 8.6 cm • Weight: 4.39kg
Security	• Trusted Platform Module(TPM)
Environmental Specifications	• Operating: -40°C to 60°C (-40°F to 140°F ) • Storage: -40°C to 70°C (-40°F to 158°F) • Humidity: 0% to 95% (non-condensing)
