Bộ phát wifi Extreme AP 7612 (AP-7612-68B30-1-WR)

Giá: Liên hệ

Extreme WiNG AP 7612 : WiNG 802.11ac Wallpate Wedge Wave 2 2×2:2, Dual radio, internal antenna.

Mô tả
Đánh giá (0)

Thiết bị phát sóng Wifi Extreme WiNG AP7612

Model	AP7612
Physical Characteristics
Dimensions	6.1″ x 4.4″ x 1.2″, 155mm x 112mm x 30mm
Weight	.6 lbs/0.27kg
Housing	ABS Plastic, Aluminum Backplate
Available mounting	Included Wall Mount Bracket
LEDs Activity Indication	3 Side-Mounted LEDs; Radio 1, Radio 2, BLE

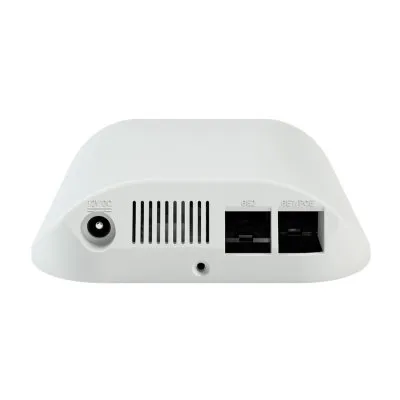

LAN Ethernet	2x IEEE 802.3 Gigabit Ethernet Auto-Sensing. PoE-Out on GE2
Antenna	2.4 GHz Band; 5.4dBi; 5GHz Band, 8.5dBi
Console port	Not User Accessible
User Environment
Operating Temperature	32° F to 104° F/ 0° C to 40° C
Storage Temperature	-40°F to 158°F/-40°C to 70°C
Operating Humidity	0% – 95% (noncondensing)
Electrostatic Discharge	8kV Air, 6kV Contact
Power Specifications
Operating Voltage	PoE-PD Spec: 48VDC; Wall Brick: 12VDC
Operating current	PoE-PD Spec: 200 mA at 48V typical (9.6W); (w/o PoE daisy chain) : Wall Brick: 1.5a
PoE-PD class	802.3af, 802.3at
PoE-out	802.3af When the Input Power is 802.3at. PoE-Out is Only Available When the Input Power is PoE
Networking Specification
Layer 2 and Layer 3	Layer 3 Routing, 802.1q, DynDNS, DHCP Server / Cient, BOOTP Client, PPPoE, and LLDP
Security	Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA TripleMethodology Rogue Detection: 24×7 dual-band WIPS sensing, on-board IDS, and secure guest access (hotspot) with captive portal, IPSec, and RADIUS Server
Quality of Service (QoS)	WMM, WMM-UAPSD, 802.1p, Diffserv, and TOS
Radio Specification
Wireless Medium	Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO)
Network Standards	IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, and WMM-UAPSD, L2TPv3, Client VPN, MESH (released in a future version of WiNG), Captive Portal server, Support SNMP v1, v2c, v3
Data Rates Supported	802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48 and 54 Mbps; 802.11a: 6,9,12,18,24,36,48, and 54 Mbps; 802.11n: MCS 0-15 up to 300 Mbps; 802.11ac on 2G VHT MCS0-9 up to 400Mbps, 802.11ac on 5G: VHT MCS 0-9 up to 866.7 Mbps
Operating Channel	2.4 GHz Band: Channel 1 through Channel 13 5 GHz Band: Channel 36 through Channel 165 *Channel Availability Depends on Local Regulatory Restriction
Antenna Configuration	2X2 MIMO (transmit/receive on both antennas). Transmit Power Adjustment 1dB Increment
Operating Frequencies	2412 to 2472 MHz, 5180 to 5825 MHz
