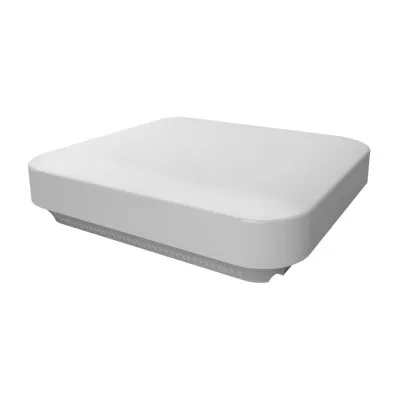

Bộ phát wifi Extreme AP 7622 (AP-7622-68B30-1-WR)

Giá: Liên hệ

Bộ phát sóng không dây chuẩn 802.11abgn/ac, indoor.
WiNG 802.11abgn/ac Ceiling(Wallplate) Wedge 867 Mbps Sing, Dual band radio 1×1; or single band radio 2×2, internal antenna MIMO 2×2 Access Point
1 Year Service Support – PartnerWorks

Danh mục: Bộ phát wifi Extreme

Mô tả
Đánh giá (0)

Thiết bị phát sóng Wifi Extreme WiNG AP7622

Product Name	Extreme Wireless WiNG AP7622
802.11AC Capabilities
Multi-operational modes including real-time dual-band, dual-concurrent 2.4GHz + 5GHz concurrent single stream (1×1:2.4G + 1×1:5G) 2.4GHz or 5GHz dual stream (2×2:2.4G or 2×2:5G) 20, 40, 80 MHz Channels AMSDU, AMPDU, RFIS, STBC (when running 2×2 single band), LDPC MIMO power save (static and dynamic) Maximal Ratio Combining (MRC) when running single-band mode 802.11ac Wave 2
Networking
Layer 2 and Layer 3	Layer 3 routing, 802.1q, DynDNS, DHCP server/ client, BOOTP client, PPPoE, and LLDP
Security	Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WIDs/WIPs, IPSec, RADIUS svr
QoS	WMM, WMM-UAPSD, 802.1p, COS, Diffserv. Role-based QoS and packet marking
Radio Specifications
Mode 2.4GHz	Maximum conducted Tx power: 19dBm
Mode 5GHz	Maximum conducted Tx power: 17dBm
Transmit power increments	1dBm
Operating Channels and Frequencies	– 2.4 GHz band: channel 1-13; 2412 to 2472 MHz – 5.2 GHz band: channel 36-165; 5180 to 5850 MHz – 2.4GHz Bluetooth: channel 0-78 – Channel availability depends on local regulatory restrictions
Wireless Medium	DSSS, OFDM, MIMO
Network Standards	– IEEE 802.11a/b/g/n/ac, 802.11d, and 802.11i – WPA2, WMM, WMM-UAPSD, L2TPv3, Client VPN, MESH, Captive Portal server, BT2.0, BLE – 802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48, and 54 Mbps – 802.11a: 6,9,12,18,24,36,48, and 54 Mbps
Physical Characteristics
Dimensions	4“ x 4” x 1.5” (150mm x 140mm x 39mm)
Weight	0.85bs (0.32kg)
Housing	Plastic plenum-rated housing
Mounting	Included mounting for flush mount or T-bar mount
LEDs Indicate system status	Green, Amber, Blue
LAN	(1) x IEEE 802.3 Gigabit Ethernet auto-sensing
Antenna	Internal
Console	RJ45
DC Specifications
Typical/Max Power	4.5 watts/6 watts
DC Power	12VDC, 850ma, 2.5mm center positive
User Environment
Operating Temperature	0° C to +40 ° C (+32° F to +104° F)
Humidity	95% RH noncondensing
Electrostatic Discharge	15kV air, 8kV contact
Accessories
DC Power Supply	(37215) PWR 12VDC, 2A 2.5mm x 5.5mm connector
Extended T-Bar Kit	KT-135628-01
I-Beam Clip	BRKT-000147A-01
Regulatory
UL/cUL 60950-1, IEC/EN60950-1, UL2043, RoHS. FCC (USA), EU, TELEC
