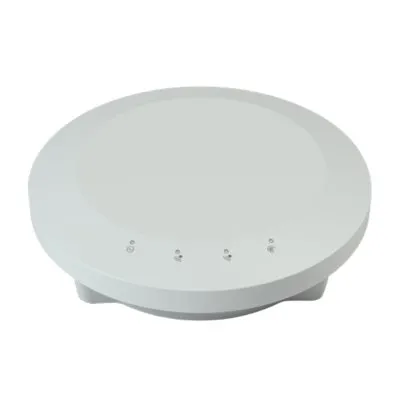

Bộ phát wifi Extreme AP7632i (AP-7632-680B30-WR)

Giá: Liên hệ

Extreme WiNG AP 7632i : WiNG 802.11ac Indoor Wave 2, Access Point, 2×2:2, Dual Radio 802.11ac/abgn, internal antenna

Mô tả
Đánh giá (0)

Thiết bị phát sóng Wifi Extreme WiNG AP7632i

Model	AP7632i (AP-7632-680B30-WR)
Physical Characteristics
Dimensions	AP 7632i: 6.3 in x 1.7 in, 161 mm diameter x 48.5 mm
Weight	AP 7632i: .7 lbs, .3 kg
Housing	Plenum-rated housing (UL2043)
Available Mounting	WiNG bracket compatible, Extreme Multi-Tbar, keyhole slots, Wall04
Configurations	Above drop ceiling, under ceiling or on wall
LEDs Activity Indication	2 top-mounted LEDs; activity indication
LAN Ethernet	1x IEEE 802.3 Gigabit Ethernet auto-sensing
Antenna	AP 7632-680B30: 4dBi – 2.4 GHz band; 6 dBi – 5GHz band, IoT 4.1 dBi
Console Port	RJ45
USB Port	USB2.0 for purpose-built modules. Available on AP-7632-680B40 model
User Environment
Operating Temperature	AP-7632-680B30: 32° F to 104° F/ 0° C to 40° C
Storage Temperature	-40°F to 158°F/-40°C to 70°C
Operating Humidity	0% – 95% (noncondensing)
Electrostatic Discharge	AP-7632-680B30: 15kV air, 8kV contact
Power Specifications
Operating Voltage	PoE-PD: 48VDC; Wall brick: 12VDC
Operating Current	PoE-PD: 230mA at 48V; Wall brick: 1.5a
PoE-PD Class	802.3af, 802.3at
Power Consumption	AP 7632i Typical: 11 W, Idle (Radios ON): 4.8 W
Networking Specification
Layer 2 and Layer 3	Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE and LLDP
Security	Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA TripleMethodology Rogue Detection: 24×7 dual-band WIPS sensing, on-board IDS, and secure guest access (hotspot) with captive portal, IPSec, and RADIUS Server
Quality of Service	WMM, WMM-UAPSD, 802.1p, Diffserv, and TOS
Radio Specifications
Wireless Medium	Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO)
Network Standards	IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, and WMM-UAPSD, L2TPv3, Client VPN, MESH (released in a future version of WiNG), Captive Portal server, Support SNMP v1, v2c, v3
Data Rates Supported	802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48 and 54 Mbps; 802.11a: 6,9,12,18,24,36,48, and 54 Mbps; 802.11n: MCS 0-15 up to 300 Mbps; 802.11ac on 2G VHT MCS0-9 up to 400Mbps, 802.11ac on 5G: VHT MCS 0-9 up to 867 Mbps
Operating Channels*	2.4 GHz band: channel 1 through channel 13 5 GHz band: channel 36 through channel 165
Antenna Configuration	2X2 MIMO (transmit/receive on both antennas). Transmit power adjustment 1dB increment
Operating Frequencies	2412 to 2472 MHz, 5180 to 5825 MHz
Performance and Capacity
Concurrent Users	256 per radio
SSID	8 per radio, 16 per AP
