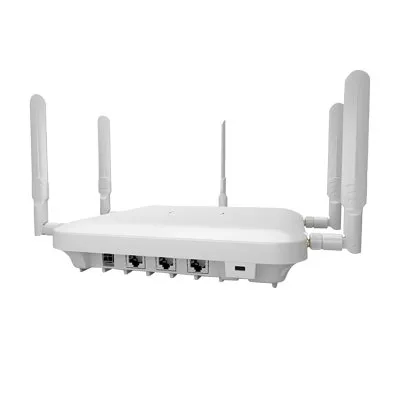

Bộ phát wifi Extreme WiNG AP 8533

Giá: Liên hệ

Extreme WiNG AP 8533 (AP-8533-68SB40-1-WR) : 802.11ac Wave 2, Tri-Radio, dedicated sensor, BLE, external antenna, 2xGE.

Mô tả
Đánh giá (0)

Thiết bị phát sóng Wifi Extreme WiNG AP 8533

Model	WiNG AP 8533
Physical Characteristics
Dimensions	8.25” x 8.25” x 1.8” 210mm x 210mm x 46mm
Weight	3.0lbs, 1.27kg
Mounting	Included mounting bracket for flush mount or T-bar mount
LEDs	System status: Green, Amber, Blue, White
LAN Ethernet	2x IEEE 802.3 Gigabit Ethernet auto-sensing
Antenna Connectors	AP-8533-68SB40; five RP SMA connectors; one RP-SMA dedicated for BT/BLE radio
Console	RJ45
802.11ac Capabilities	• Quad radios (3 Wi-Fi radios + one Bluetooth® radio) • Band-unlocked Network Sensor for WIPS and Location Service • 4×4 MU-MIMO with 4 Spatial Streams • Auto-Selecting MU-MIMO supports 1 and 2 stream wireless clients • 20, 40, and 80 MHz Channels • Packet Aggregation (AMSDU, AMPDU) and RIFS • MIMO Power Save (Static and Dynamic) • Advanced forward error correction coding: STBC, LDPC • 802.11ac transmit beamforming • Maximal Ratio Combining (MRC) • NitroQAM provides up to 800 Mbps on 2.4GHz radio and up to 2166 Mbps on 5GHz radio • Support for up to 500 associated client devices per access point and up to 16 BSSIDs per radio
User Environment
Operating Temperature	32° F to 140° F/0° C to 50° C
Storage Temperature	40° F to 158° F/-40° C to 70° C
Operating Humidity	95% RH non-condensing
Electrostatic Discharge	Internal AP-8533-68SB30/3E: ESD to ±12KV air and ±8KV contact
Antenna Information
Internal Antenna	Radio 1 (2.4GHz) : 5.2dBi Radio 2 (5.2GHz): 6.8 dBi Radio 3 (2.4GHz/5.2GHz): 4.9/5.9 dBi Radio 4 (2.4GHz): Integrated antenna with 7.7dBi
External Antenna	Radio 1, 2 : up to 10dBi Radio 3 (2.4GHz/5.2GHz) integrated antenna: 4.9/5.9 dBi Radio 4 (2.4GHz): dual-mode antenna option. Integrated antenna with 7.7dBi or optional external antenna up to 11dBi.
DC Power Specifications
Operating Power	Max Power Consumption: 24W Typical Power Consumption: 12W
Radio Specifications
Wireless Medium	DSSS, OFDM, MIMO, MU-MIMO
Network Standards	IEEE 802.11a/b/g/n/ac, 802.11d, and 802.11i WPA2, WMM, WMM-UAPSD, L2TPv3 802.11b/g: 1-54 Mbps 802.11a: 6-54 Mbps 802.11n: MCS 0-31 up to 600 Mbps 802.11ac: MCS 0-9 up to 1.733 Gbps; In Nitro mode, radio 1 and 2 data rates can go up to 1000Mbps and 2166Mbps, respectively.
Operating Channels	2.4 GHz band: channel 1-13 5.2 GHz band: channel 36-165 2412 to 2472 MHz, 5180 to 5850 MHz Channel availability depends on local regulatory restrictions
Antenna Configuration	Radio 1: 2.4GHz: 4×4 with 4SS Radio 2: 5GHz: 4×4 with 4SS Radio 3: Dual-Band Sensor: 1×3 with 3SS Radio 4: Bluetooth radio with selectable single integrated antenna or external antenna
Conducted Radio Power	Up to 21dBm, depending on local regulatory restrictions, in 1dB increments
Operating Frequencies	2412 to 2472 MHz, 5180 to 5850 MHz
Networking
Layer 2 and Layer 3	Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE, and LLDP
Security	Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA Triple Methodology Rogue Detection: 24×7 dual-band WIPS sensing, on-board IDS and secure guest access (hotspot) with captive portal, IPSec, and RADIUS Server
QoS	WMM, WMM-UAPSD, 802.1p, Diffserv, and TOS. Role-based QoS with rule-based packet marking.
