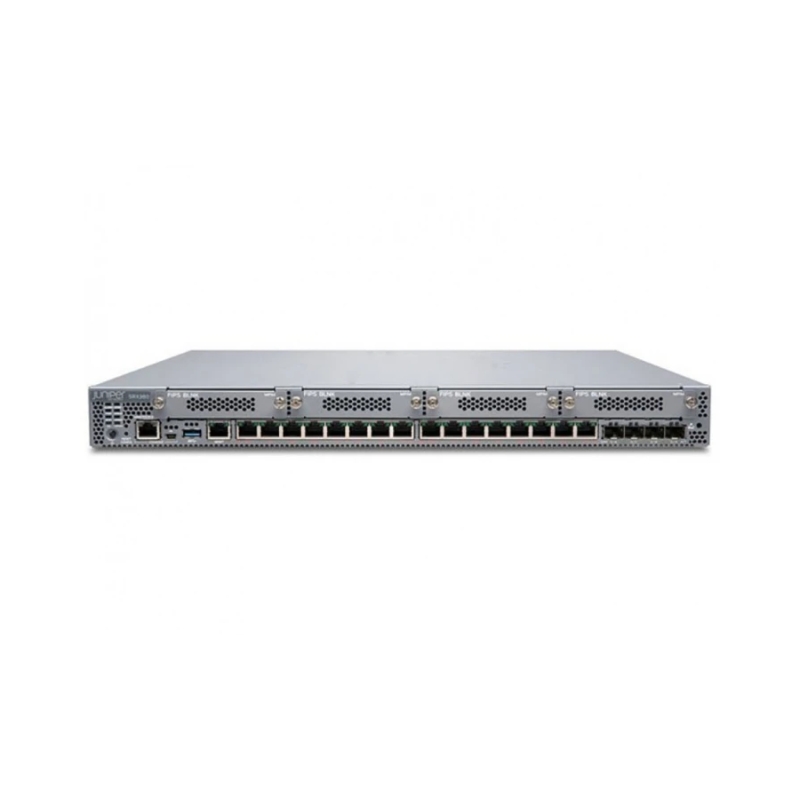

Firewall Juniper SRX380-P-SYS-JB-AC

Giá: Liên hệ

SRX380-P-SYS-JB-AC SRX380 Services Gateway includes hardware (16GbE PoE+, 4x10GbE, 4x MPIM slots, 4GB RAM, 100GB SSD, single AC power supply, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching)

Danh mục: Firewall Juniper

Mô tả
Đánh giá (0)

Thông số kỹ thuật Firewall Juniper SRX380-P-SYS-JB-AC

Product Name	SRX380-P-SYS-JB-AC
Total onboard ports	20 (16x1GbE, 4x10GbE)
Onboard RJ-45 ports	16x1GbE
Onboard small form-factor pluggable (SFP) transceiver ports	4x10GbE SFP+
MACsec-capable ports	16x1GbE; 4x10GbE
Out-of-Band (OOB) management ports	1x1GbE
Mini PIM (WAN) slots	4
Console (RJ-45 + miniUSB)	1
USB 3.0 ports (type A)	1
Optional PoE+ ports	16
Memory and Storage
System memory (RAM)	4 GB
Storage (flash)	100 GB SSD
SSD slots	1
Dimensions and Power
Form factor	1U
Size (WxHxD)	17.36 x 1.72 x 18.7 in. (44.09 x 4.37 x 47.5 cm) 17.36 x 1.72 x 20.47 in. (44.09 x 4.37 x 52 cm)
Weight (device and PSU)	15 lb (6.8 kg) with 1xPSU 16.76 lb (7.6 kg) with 2xPSU
Redundant PSU	Yes
Power supply	1+1 hot-swappable AC PSU
Maximum PoE power	480W
Average power consumption	150 W (without PoE); 510 W (with PoE)
Average heat dissipation	511.5 BTU/hr (without PoE)
Maximum current consumption	1.79A/7.32A
Acoustic noise level	< 50dBA @ room temperature 27C
Airflow/cooling	Front to back
Environmental, Compliance, and Safety Certification
Operating temperature	32° to 104° F (0° to 40° C)with MPIMs 32° to 122° F (0° to 50° C) without MPIMs
Nonoperating temperature	-4° to 158° F (-20° to 70° C)
Operating humidity	10% to 90% noncondensing
Nonoperating humidity	5% to 95% noncondensing
Meantime between failures (MTBF)	28.1 years
FCC classification	Class A
RoHS compliance	RoHS 2
Common Criteria certification	N/A
Performance and Scale
Routing with packet mode (64 B packet size) in Kpps5	1,700
Routing with packet mode (IMIX packet size) in Mbps5	5,000
Routing with packet mode (1,518 B packet size in Mbps5	10,000
Stateful firewall (64 B packet size) in Kpps5	1,700
Stateful firewall (IMIX packet size) in Mbps5	4,000
Stateful firewall (1,518 B packet size) in Mbps5	10,000
IPsec VPN (IMIX packet size) in Mbps5	1,000
IPsec VPN (1,400 B packet size) in Mbps5	3,500
Application visibility and control in Mbps6	6,000
Recommended IPS in Mbps6	2,000
Next-generation firewall in Mbps6	1,000
Route table size (RIB/FIB) (IPv4 or IPv6)	1 million/600,0007
Maximum concurrent sessions (IPv4 or IPv6)	380,000
Maximum security policies	4,000
Connections per second	50,000
NAT rules	3,000
MAC table size	16,000
IPsec VPN tunnels	2,048
Number of remote access uses	500
GRE tunnels	2,048
Maximum number of security zones	128
Maximum number of virtual routers	128
Maximum number of VLANs	3,000
AppID sessions	64,000
IPS sessions	64,000
URLF sessions	64,000
WAN Interface
1 port T1/E1 MPIM (SRX-MP-1T1E1-R)	Yes
1 port VDSL2 Annex A/M MPIM (SRX-MP-1VDSL2-R)	Yes
1 port serial MPIM (SRX-MP-1SERIAL-R)	Yes
4G / LTE MPIM (SRX-MP-LTE-AA & SRX-MP-LTE-AE)	Yes

Các Mã tường lửa Firewall Juniper SRX 300 series khác

Mã sản phẩm	Mô tả sản phẩm
SRX300-SYS-JB	SRX300 Services Gateway includes hardware (8GbE, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching). RMK not included.
SRX320-SYS-JB	SRX320 Services Gateway includes hardware (8GbE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching). RMK not included.
SRX320-SYS-JB-P	SRX320 Services Gateway includes hardware (8GbE, 6-port POE+, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching). RMK not included.
SRX340-SYS-JB	SRX340 Services Gateway includes hardware (16GbE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching)
SRX345-SYS-JB	SRX345 Services Gateway includes hardware (16GbE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching)
SRX345-SYS-JB-2AC	SRX345 Services Gateway includes hardware (16GbE, 4x MPIM slots, 4G RAM, 8G Flash, dual AC power supply, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching)
SRX345-SYS-JB-DC	SRX345 Services Gateway includes hardware (16GbE, 4x MPIM slots, 4G RAM, 8G Flash, single DC power supply, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching)
SRX380-P-SYS-JB-AC	SRX380 Services Gateway includes hardware (16GbE PoE+, 4x10GbE, 4x MPIM slots, 4GB RAM, 100GB SSD, single AC power supply, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching)
