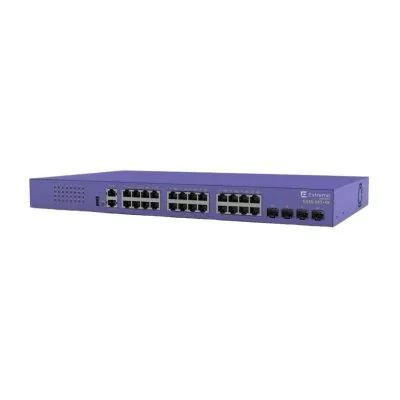

Switch Extreme L2 X435-24T-4S

Giá: Liên hệ

Thiết bị chuyển mạch ExtremeSwitching™ X435-24T-4S:
• 24 x 10/100/1000BASE-T access ports. Full / Half-Duplex (auto-sensing)
• 4 x 1/2.5GBASE-X SFP uplink ports (unpopulated)
• 1 x AC PSU
• 1 x 10/100/1000BASE-T out-of-band management port
• 1 x USB A port for external USB flash

Danh mục: Switch Extreme

Mô tả
Đánh giá (0)

Thiết bị chuyển mạch Switch Extreme X435-24T-4S

Model	X435-24T-4S
Max Active 10/100/1000BASE-T Ports	• 24
Max Active 1Gb/2.5Gb SFP Ports	• 4
Aggregated Switch Bandwidth	• 68 Gbps
Frame Forwarding Rate	• 50.6 Mpps
Specifications	• Layer 2/MAC Addresses: 16K • 4096 VLANs/VMANs (2 VLANs reserved for system use) • IPv4 LPM Entries: 32 • IPv4 Hosts: 3100 • IPv6 LPM Entries: 16 • IPv6 Hosts: 500 • IP Multicast groups: 64 • IP Multicast (s,v,g) entries: 1500 • 9216 Byte Max Packet Size (Jumbo Frame) • 8 queues per port • 1K ingress ACL rules • OnePolicy Scaling • Up to 192 authenticated policy users per switch • Policy Profiles: 63 • Unique Permit/Deny Rules per switch: 184
CPU/Memory	• ARM A9 CPU • 512 MB DRAM • 128 MB Flash
Operating Conditions	• Temperature • 8-port X435 models: 0° C to 40° C (32° F to 104° F) • 24-port X435 models: 0° C to 45° C (32° F to 113° F) • Humidity: 10% to 95% relative humidity, non-condensing • Altitude: 0 to 3,000 meters (9,850 feet) • Shock (half sine) 30m/s2 (3G), 11ms, 60 shocks • Random vibration: 3 to 500 Hz at 1.5 G rms
Weights	• 2.95 kg
Dimensions	• 441mm x 43.5mm x 254mm
