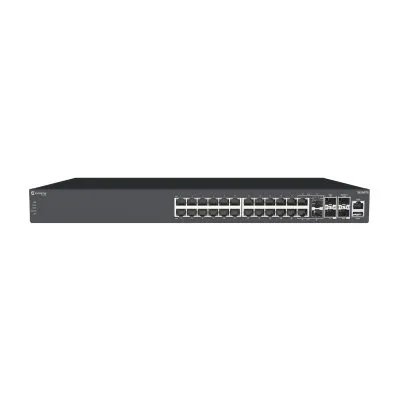

Switch Extreme L3 ERS 3626GTS 30 cổng (AL3600A05-E6)

Giá: Liên hệ

Thiết bị chuyển mạch ExtremeSwitching™ ERS 3626GTS 30 cổng:
Hỗ trợ 24 cổng 1000BASE-T RJ45; 2 cổng 100/1000BASE-X combo; 2 cổng 10GBASE-X SFP+ uplink; 2 cổng 10GBASE-X SFP+ uplink/stack. Băng thông chuyển mạch 128 Gbps; Tốc độ chuyển gói 95 Mpps. Hỗ trợ các tính năng: STP, LACP, LLDP, Fabric Attach – 802.1ab LLDL, …

Danh mục: Switch Extreme

Mô tả
Đánh giá (0)

Thiết bị chuyển mạch Switch Extreme ERS 3626GTS

Model	ERS 3626GTS
General	• Physical Connectivity: – 1000BASE-T Access Ports (supporting both Half- and Full-Duplex) – 1000BASE-SFP Combo Network Uplink Ports – 10GBASE-SFP+ Network Uplink Ports • Switching Fabric: – 128Gbps (Full-Duplex) for 26-port models – 188Gbps (Full-Duplex) for 50-port models • Frame Forwarding: – 95Mpps for 26-port models – 130Mpps for 50-port models • Nominal Latency: 3.5 microseconds for 64 Byte packets • Nominal Jitter: 0.84 microseconds for 64 Bytepackets • Frame Length: 64 to 1518 Bytes (Untagged), 64 to 1522 Bytes (Tagged) • Jumbo Frame: up to 9,216 Bytes (802.1Q Tagged) • Stackable Chassis Throughput: 24Gbps (Full-Duplex) per Switch, up to 192Gbps
Layer 2	• MAC Address: up to 16,384 • Port-based VLANs: 256 • MSTP Instances: 8 • MLT/LACP Groups: 6 • Links per MLT/LACP Group: 4 • DHCP Snooping Entries: up to 512 • 802.1X Clients: 32 per Port • LLDP Neighbors: up to 816
Layer 3 IPv4 Routing Services	• ARP Entries: up to 512 • Static ARP Entries: up to 256 • IP Interfaces: up to 64 • IP Routes: up to 256 • IP Static Routes: up to 32 • IP Route Policies: up to 64 • RIP Interfaces: up to 16 • RIP Routes: up to 256
Physical Specifications	• Height: 44 mm x Width: 440 mm x Depth: 280 mm – Weight: 3.5-6.3 kg
Power Specifications	• Up to 24.78W, up to 0.24A, and up to 84.55BTU/hr @ 200-240VAC • Up to 24.60W, up to 0.42A, and up to 83.94BTU/hr @ 100-110VAC • 14.82W power consumption at idle, and 18.28W under typical traffic load
Environmental Specifications	• Operating Temperature: 0°C to 50°C (32°F to 122°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 0 to 95% maximum relative humidity, non-condensing • Storage Humidity: 10 to 95% maximum relative humidity, non-condensing • Operating Altitude: 0 to 3,048m (0 to 10,000ft) maximum Storage altitude: 0 to 12,192m (0 to 40,000ft) maximum • Acoustic Noise: – Less than 47dbA at 25°C – Less than 55dbA at 50°C
